Features
MY CYCLE SETTINGS
Dry clothes with the settings you prefer on any cycle, rather than the defaults, and store your settings for later use.

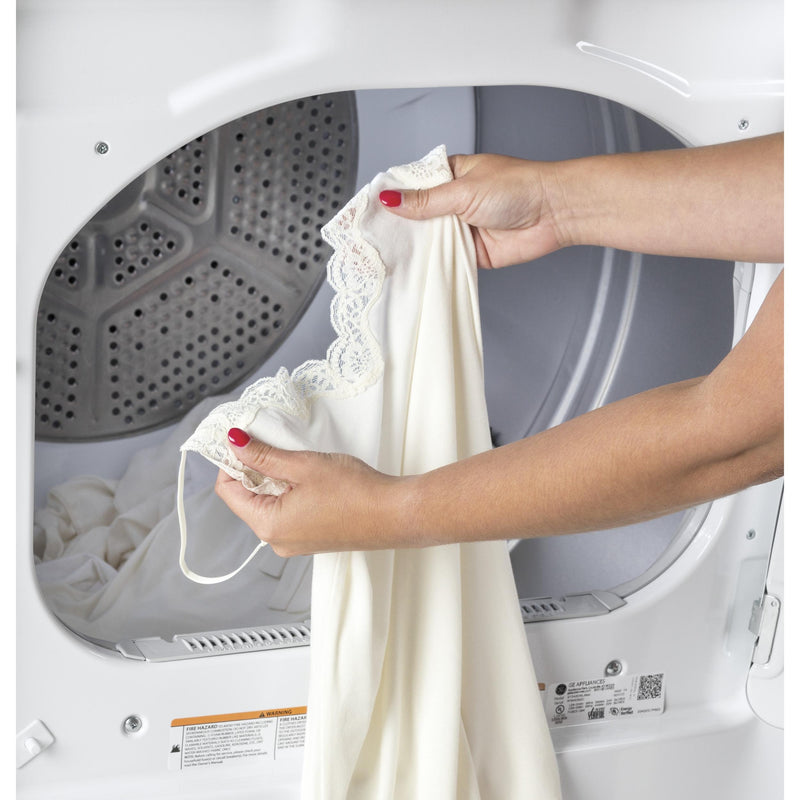

DAMP ALERT
Signals when delicate clothes reach the ideal dampness level for ironing or final air drying
Additional Features
UP TO 120 FT. VENTING CAPABILITY
Provides flexible installation.
ENERGY STAR® QUALIFIED
Meets or exceeds federal guidelines for energy efficiency for year-round energy and money savings.
EXTENDED TUMBLE
Freshly tumbles your garments periodically for up to 8 hours when unable to move clothing to the dryer right away.
HE SENSOR DRY
Keep your clothes looking and feeling their best. Dual thermistors continually monitor temperature with a sensor bar that measures moisture to prevent over-drying.
Specifications
General
Type
Vented
Power Source
Electric
Color
White
Manufacturer Color
White

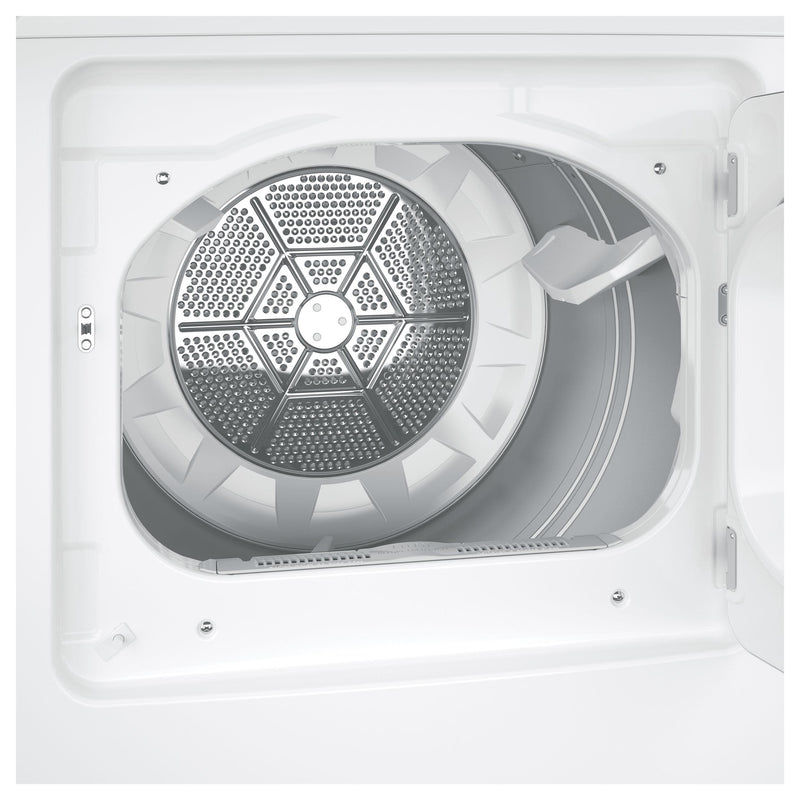

Tub Material
Aluminized Steel
Capacity
Capacity
7.4 cu. ft.

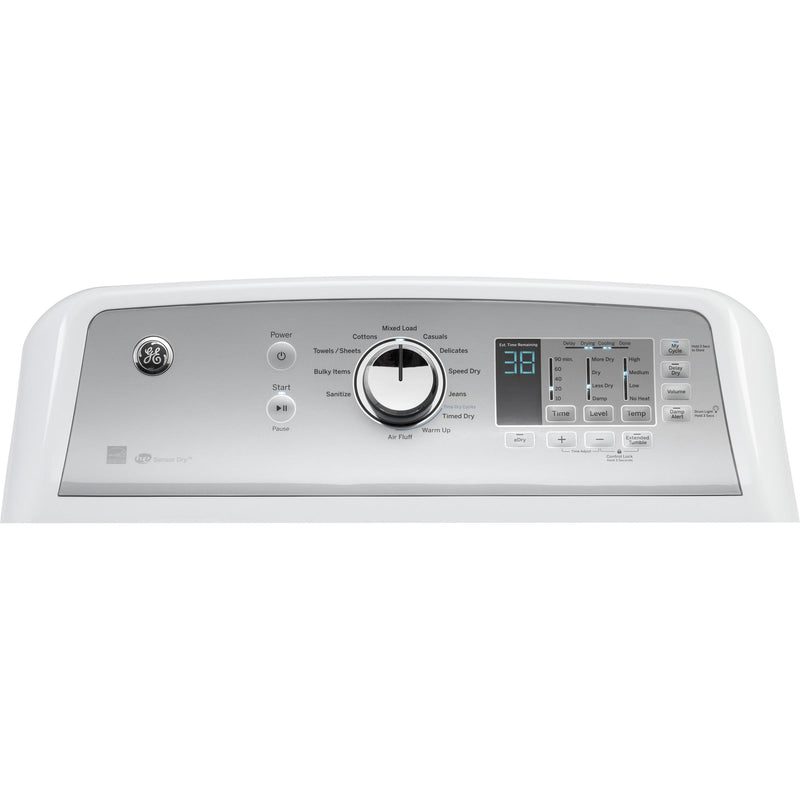

Cycle Information
Number of Cycles
12
Dry Cycles
• Sanitize
• Bulky Items
• Towels/Sheets
• Cottons
• Mixed Load
• Casuals
• Delicates
• Speed Dry
• Jeans
• Timed Dry
• Warm Up
• Air Fluff
• Bulky Items
• Towels/Sheets
• Cottons
• Mixed Load
• Casuals
• Delicates
• Speed Dry
• Jeans
• Timed Dry
• Warm Up
• Air Fluff
Options
• My Cycle
• Wrinkle Care
• Damp Alert
• Extended Tumble
• Wrinkle Care
• Damp Alert
• Extended Tumble
Features
Technologies
ENERGY STAR® qualified
Dryness Levels
• Cool Down
• Less Dry
• More Dry
• Less Dry
• More Dry
Temperature Settings
• High
• Medium
• Low
• Extra Low
• No Heat
• Medium
• Low
• Extra Low
• No Heat
Number of Temperature Settings
5
Wi-Fi
Yes
Light
Yes
Digital Display
Yes

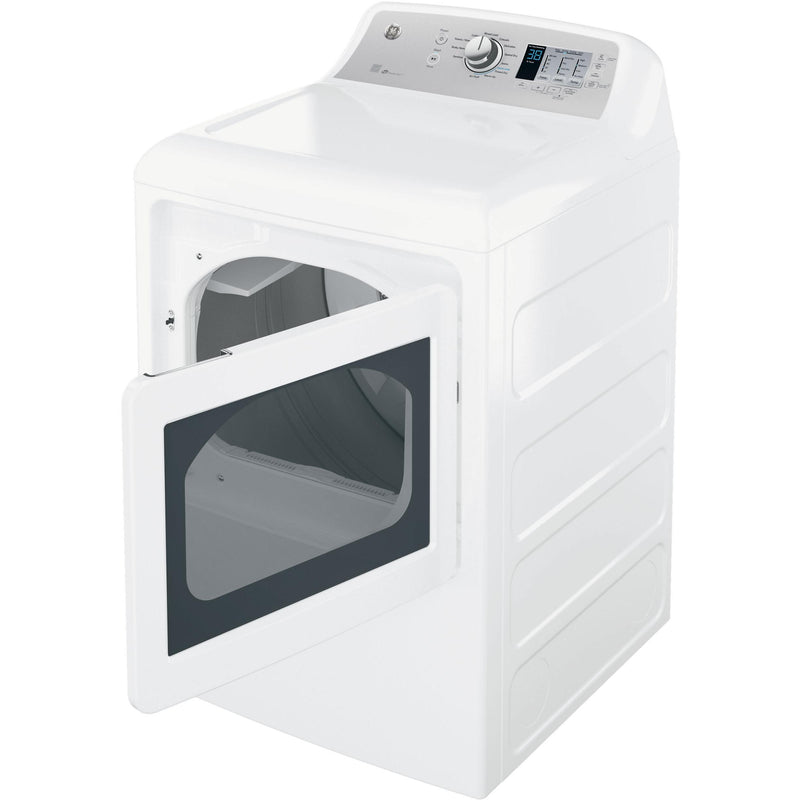

Reversible Door
Yes
Sensor Dry
Yes
Additional Information
• Up to 120 ft. venting capability
• Dual thermistors
• eDry Energy Saving Option

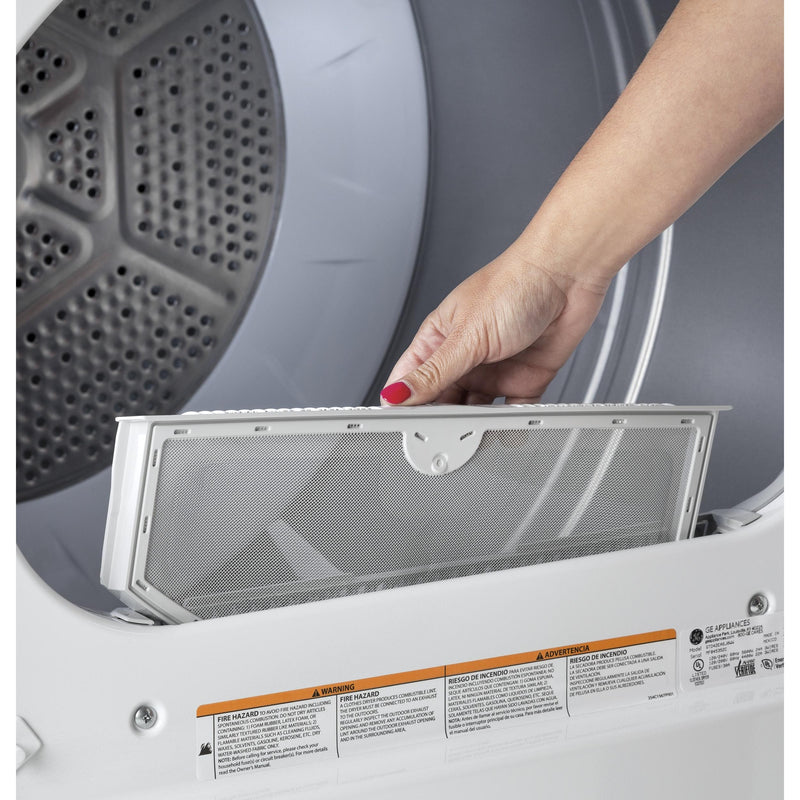

• Removable Up-Front Lint Filter
• Exhaust Options 4-Way (Rear; Right; Left & Bottom)
• LED Cycle Status Indicator Lights
• Dual thermistors
• eDry Energy Saving Option
• Removable Up-Front Lint Filter
• Exhaust Options 4-Way (Rear; Right; Left & Bottom)
• LED Cycle Status Indicator Lights
Electrical Information
Information
• 240/208 V
• 5600 W
• 24 A
• 60 Hz
• 5600 W
• 24 A
• 60 Hz
Certifications and Approvals
Energy Star Certified
Yes
Accessories
Optional
WiFi Connect (Requires part no. PBX10W00Y0)
Dimensions
Class Width
26" - 27"
Width
27 inch(es) / 68.58 cm
Height
46 inch(es) / 116.84 cm
Depth
30.5 inch(es) / 77.47 cm
Weight
106.99 lb(s) / 48.53 kg
Additional Dimensions
• Depth with door open 90 degrees: 53"
• Height to Top of Case 38 1/2 in
• Height to Top of Case 38 1/2 in
Shipping Dimensions
Width
28.9 inch(es) / 73.41 cm
Height
46.5 inch(es) / 118.11 cm
Depth
32.2 inch(es) / 81.79 cm
Weight
121.21 lb(s) / 54.98 kg
Warranty
Warranty
Limited one year parts and labor
UPC
UPC#
084691810902
