Features

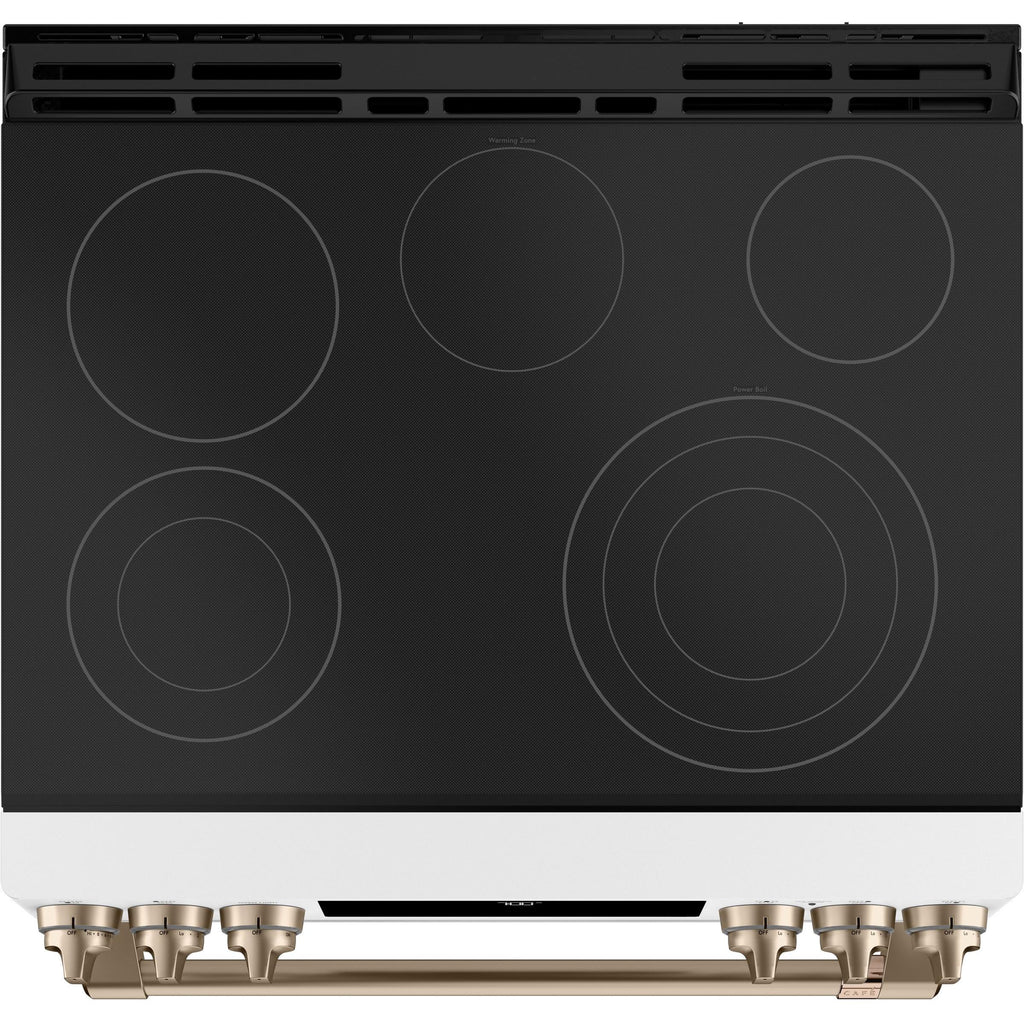

EDGE-TO-EDGE GLASS COOKTOP
A sleek look is yours with an edge-to-edge glass cooktop that provides a seamless, easy-to-clean surface with more usable cooking space for five course meals.
WIFI CONNECT
Control your oven with your smart device or simply your voice using WiFi Connect.
SELF-CLEAN WITH STEAM CLEAN
Keep your oven looking spotless with a high heat steam clean option for small spills and a self-clean cycle for larger messes.
TEMPERATURE PROBE
Get roasts and meats just right with a temperature probe that lets you monitor progress without opening the oven door.
Additional Features
CHEF CONNECT
Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range burners with the microwave's surface light and vent.
TRUE EUROPEAN CONVECTION
The European or "true" convection system that has a dedicated third dual loop heating element surrounding the convection fan, which provides even heating, even browning and superior baking.
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
White
Manufacturer Color
Matte White
Appliance Care
• Auto Self Clean
• Delay Clean Option
• Steam Clean
• Delay Clean Option
• Steam Clean
Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front Element: 1,900 W
• Left Rear Element: 2,000 W
• Right Front Element: 3,600 W Power Boil
• Right Rear Element: 1,200 W
• Center Element: 80 W Warming Zone
• Left Rear Element: 2,000 W
• Right Front Element: 3,600 W Power Boil
• Right Rear Element: 1,200 W
• Center Element: 80 W Warming Zone
Burner/Element Size
• Left Front Element: 8"/5"
• Left Rear Element: 8"
• Right Front Element: 12"/9"/6"
• Right Rear Element: 6"
• Center Element: 6"
• Left Rear Element: 8"
• Right Front Element: 12"/9"/6"
• Right Rear Element: 6"
• Center Element: 6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
5.7 cu.ft.
Number of Ovens
Single
Programs
• Convection Bake
• Convection Roast
• Convection Roast
Features
Technologies
• Chef Connect
• True European Convection with Precise Air
• Amazon Alexa
• DiGiorno
• Drop
• IFTTT
• Innit
• Nest
• The Google Assistant
• True European Convection with Precise Air
• Amazon Alexa
• DiGiorno
• Drop
• IFTTT
• Innit
• Nest
• The Google Assistant
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Audible Preheat Signal
• Auto Oven Shut-Off with Override
• Auto Recipe Conversion
• C° or F° Programmable
• Delay Bake Option (Time Bake)
• Electronic Clock and Kitchen Timer
• Fast Preheat
• Hi / Low Broil
• Oven "ON" Light
• Self-Clean Cool Down Time Display
• Temperature Probe
• Warm Mode
• Bake Wattage: 2850W
• Broiler Wattage: 4000W
• Convection Wattage: 2500W
• Big View Oven Window
• Auto Oven Shut-Off with Override
• Auto Recipe Conversion
• C° or F° Programmable
• Delay Bake Option (Time Bake)
• Electronic Clock and Kitchen Timer
• Fast Preheat
• Hi / Low Broil
• Oven "ON" Light
• Self-Clean Cool Down Time Display
• Temperature Probe
• Warm Mode
• Bake Wattage: 2850W
• Broiler Wattage: 4000W
• Convection Wattage: 2500W
• Big View Oven Window
Drawer Features
Warming
Yes
Electrical Information
Information
• 208 V / 240 V
• 40 A
• 40 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
CXFCEHKPMBZ: Brushed Bronze Kit - 2 handles; 6 knobs
Optional
• CXFCEHKPMSS: Brushed Stainless Steel Kit - 2 handles; 6 knobs
• CXFCEHKPMBT: Brushed Black Kit - 2 handles; 6 knobs
• CXFCEHKPMCU: Brushed Copper Kit - 2 handles; 6 knobs
• CXFCEHKPMFB: Flat Black Kit - 2 handles; 6 knobs
• CXADTH1PVCG: Brushed Brass Kit - 1 handle
• CXFCEHKPMBT: Brushed Black Kit - 2 handles; 6 knobs
• CXFCEHKPMCU: Brushed Copper Kit - 2 handles; 6 knobs
• CXFCEHKPMFB: Flat Black Kit - 2 handles; 6 knobs
• CXADTH1PVCG: Brushed Brass Kit - 1 handle
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
37.37 inch(es) / 94.93 cm
Depth (Without Handles)
26.87 inch(es) / 68.26 cm
Depth (Including Handles)
29.5 inch(es) / 74.93 cm
Weight
206 lb(s) / 93.44 kg
Additional Dimensions
• Oven Interior Dimensions (W x H x D): 24" x 19-7/8" x 20-5/8"
• Depth with Door Open 47-1/2"
• Depth with Door Open 47-1/2"
Shipping Dimensions
Width
32.7 inch(es) / 83.06 cm
Height
44.5 inch(es) / 113.03 cm
Depth
31.5 inch(es) / 80.01 cm
Weight
291.01 lb(s) / 132.00 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691846727
