Features
TRUE EUROPEAN CONVECTION WITH PRECISE AIR
Advanced convection uses a 3rd heating element and a reversing fan to provide the highest level of heat and air circulation.
CHEF CONNECT
Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range burners with the microwave's surface light and vent.
WIFI CONNECT
Wirelessly control oven functions from your smartphone.
HIDDEN BAKE ELEMENT
Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning.
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
Black Stainless
Manufacturer Color
Black Stainless
Appliance Care
• Steam Clean
• Delay Clean option
• Auto Self Clean
• Delay Clean option
• Auto Self Clean
Cooktop
Burners/Elements
5
Burners/Elements Output
• Left front: 1900W Bridge
• Left rear: 2000W Bridge
• Right front: 3600W Power Boil
• Right rear: 1200W
• Center: 100W Warming Zone
• Left rear: 2000W Bridge
• Right front: 3600W Power Boil
• Right rear: 1200W
• Center: 100W Warming Zone
Burner/Element Size
• Left front: 8"/5" Bridge
• Left rear: 8" Bridge
• Right front: 12"/9"/6" Power Boil
• Right rear: 6"
• Center: 6" Warming Zone
• Left rear: 8" Bridge
• Right front: 12"/9"/6" Power Boil
• Right rear: 6"
• Center: 6" Warming Zone
Elements
Smoothtop
Oven
Capacity (cu. ft.)
5.3
Number of Ovens
Single
Programs
• AirFry
• Baked Goods
• Convection Bake
• Convection Roast
• Frozen Pizza
• Frozen Snacks
• Proof
• Warming
• Baked Goods
• Convection Bake
• Convection Roast
• Frozen Pizza
• Frozen Snacks
• Proof
• Warming
Features
Technologies
• True European Convection with Precise Air
• Chef Connect
• Built-in WiFi Connect
• Connected capabilities: Amazon Alexa, DiGiorno, Drop, IFTTT, Innit, Nest, The Google Assistant
• Chef Connect
• Built-in WiFi Connect
• Connected capabilities: Amazon Alexa, DiGiorno, Drop, IFTTT, Innit, Nest, The Google Assistant
Air Fry
Yes
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• One-piece upswept, edge-to-edge, gray patterned ceramic glass cooktop
• Audible preheat signal
• Auto oven shut-off with override
• Auto recipe conversion
• Control lock capability
• C° or F° programmable
• Delay bake option (Time Cook)
• Electronic clock and kitchen timer
• Fast preheat
• Hi / Low broil
• Oven "ON" light
• Preheat notification
• Temperature probe
• Digital temperature display

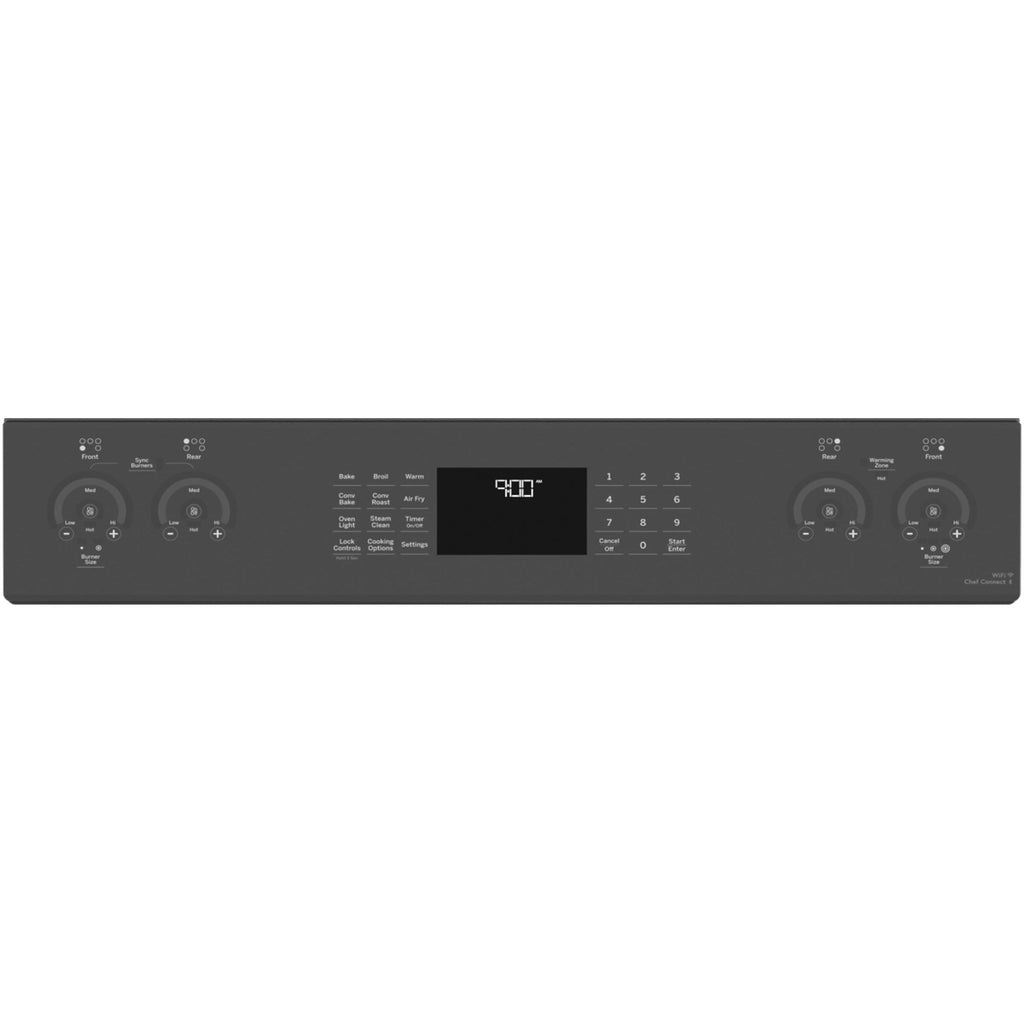

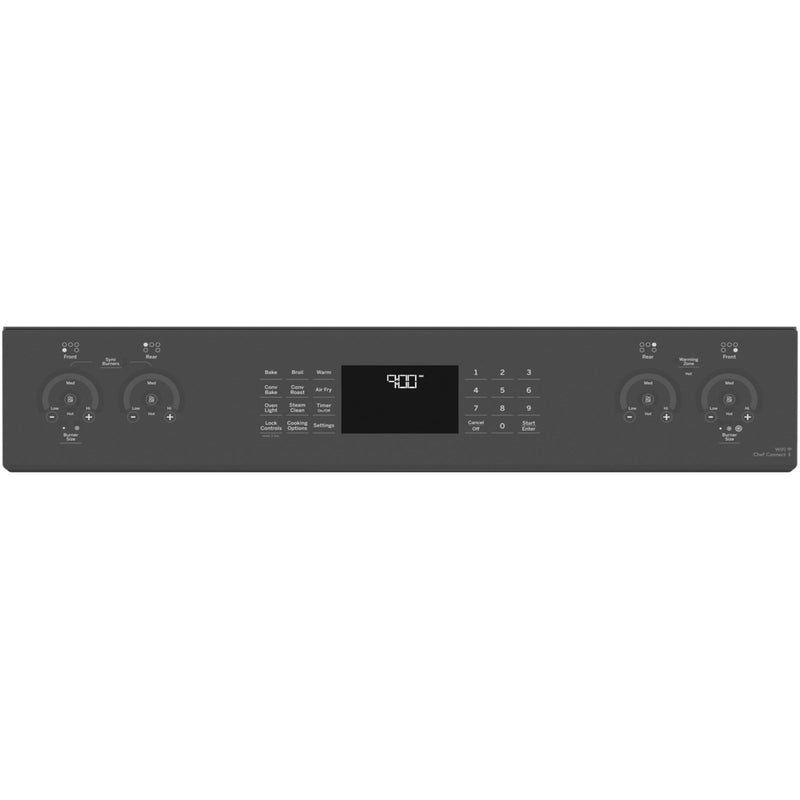

• Electronic oven controls
• Hidden bake element
• 6-Pass broil element
• 3 Flat heavy nickel racks
• 6 Rack positions
• 1 Halogen interior light
• Melt setting
• Removable full-width storage drawer
• Heating element "ON" indicator light
• Hot surface indicator lights: 5
• Audible preheat signal
• Auto oven shut-off with override
• Auto recipe conversion
• Control lock capability
• C° or F° programmable
• Delay bake option (Time Cook)
• Electronic clock and kitchen timer
• Fast preheat
• Hi / Low broil
• Oven "ON" light
• Preheat notification
• Temperature probe
• Digital temperature display
• Electronic oven controls
• Hidden bake element
• 6-Pass broil element
• 3 Flat heavy nickel racks
• 6 Rack positions
• 1 Halogen interior light
• Melt setting
• Removable full-width storage drawer
• Heating element "ON" indicator light
• Hot surface indicator lights: 5
Drawer Features
Storage
Yes
Electrical Information
Information
• Amp rating at 208V: 40
• Amp rating at 240V: 40
• Bake wattage: 2850W
• Broiler wattage: 3800W
• KW rating at 208V: 11.6
• KW rating at 240V: 15.5
• Amp rating at 240V: 40
• Bake wattage: 2850W
• Broiler wattage: 3800W
• KW rating at 208V: 11.6
• KW rating at 240V: 15.5
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
Cooktop cleaning cream and sponge
Optional
Trim kit: JXFILLR1BB
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
37.25 inch(es) / 94.62 cm
Depth (Without Handles)
25.5 inch(es) / 64.77 cm
Depth (Including Handles)
28.25 inch(es) / 71.76 cm
Weight
200 lb(s) / 90.72 kg
Additional Dimensions
• Oven interior dimensions (W x H x D): 24-1/8" x 19-1/2" x 19-3/8"
• Depth with door open: 47 7/8"
• Height to cooking surface: 35 3/4" - 36 1/2"
• Depth with door open: 47 7/8"
• Height to cooking surface: 35 3/4" - 36 1/2"
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
44.8 inch(es) / 113.79 cm
Depth
30.9 inch(es) / 78.49 cm
Weight
220.99 lb(s) / 100.24 kg
Warranty
Warranty
Limited 1-year for entire appliance on parts and labor
UPC
UPC#
084691855545
