Features
MY CYCLE SETTINGS
Dry clothes with the settings you prefer on any cycle, rather than the defaults, and store your settings for later use.
DAMP ALERT
Signals when delicate clothes reach the ideal dampness level for ironing or final air drying
Additional Features
UP TO 120 FT. VENTING CAPABILITY
Provides flexible installation.

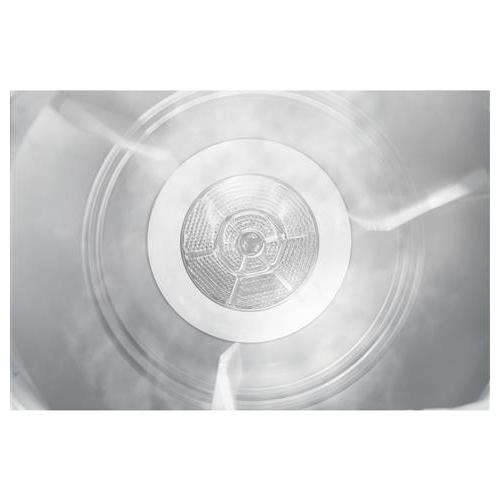

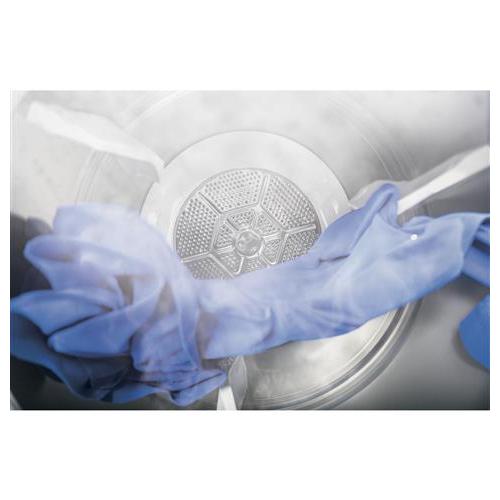

STEAM SELECT
For the best results, customize your cycle by specifying the number of garments needing to be steamed
EXTENDED TUMBLE
Freshly tumbles your garments periodically for up to 8 hours when unable to move clothing to the dryer right away.
HE SENSOR DRY
Keep your clothes looking and feeling their best. Dual thermistors continually monitor temperature with a sensor bar that measures moisture to prevent over-drying.
ENERGY STAR® QUALIFIED
Meets or exceeds federal guidelines for energy efficiency for year-round energy and money savings.
WIFI CONNECT
Control and monitor your laundry from anywhere with a smart device or Amazon Alexa
Specifications
General
Type
Vented
Power Source
Electric
Color
Grey
Manufacturer Color
Diamond Grey
Tub Material
Aluminized Steel
Capacity
Capacity
7.4 cu. ft.

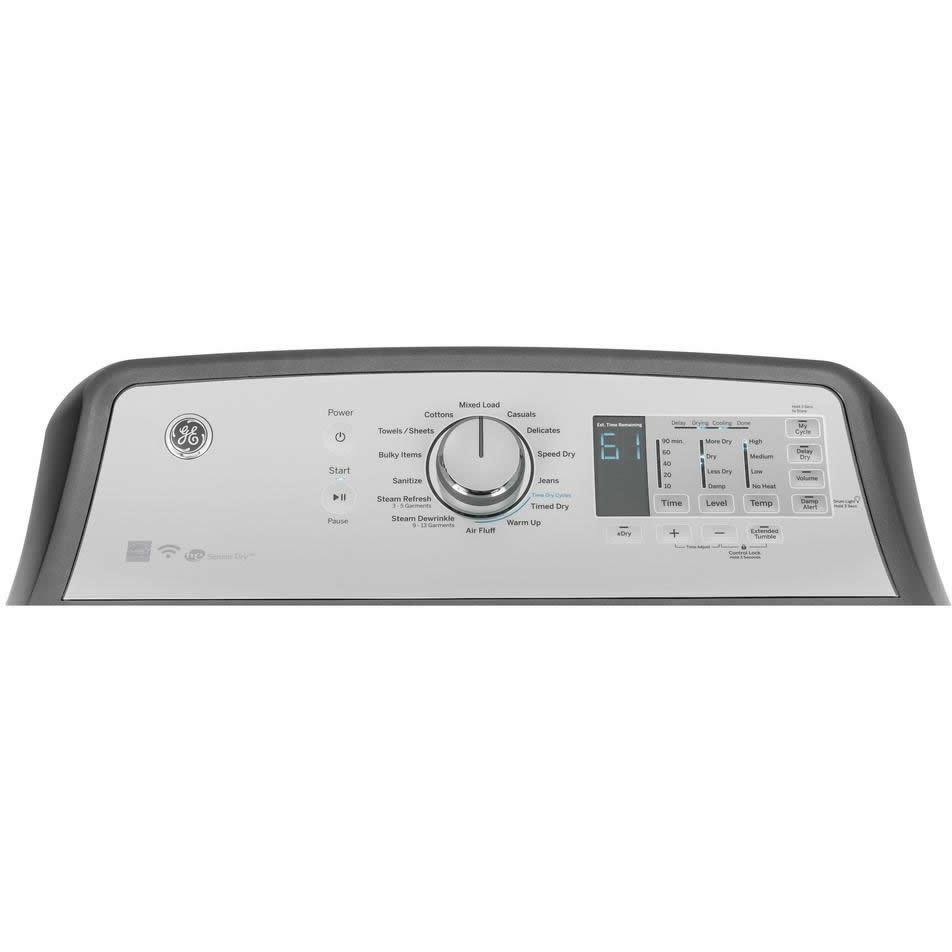

Cycle Information
Number of Cycles
14
Dry Cycles
• Air Fluff
• Warm Up
• Timed Dry
• Jeans
• Speed Dry
• Delicates
• Casuals
• Mixed Load
• Cottons
• Towels/Sheets
• Bulky Items
• Sanitize
• Steam Refresh
• Steam Dewrinkle
• Warm Up
• Timed Dry
• Jeans
• Speed Dry
• Delicates
• Casuals
• Mixed Load
• Cottons
• Towels/Sheets
• Bulky Items
• Sanitize
• Steam Refresh
• Steam Dewrinkle
Options
• My Cycle
• Wrinkle Care
• Damp Alert
• Extended Tumble
• Wrinkle Care
• Damp Alert
• Extended Tumble
Features
Technologies
ENERGY STAR® qualified
Dryness Levels
• More dry
• Dry
• Less dry
• Damp
• Dry
• Less dry
• Damp
Temperature Settings
• High
• Medium
• Low
• No Heat
• Medium
• Low
• No Heat
Number of Temperature Settings
4
Wi-Fi
Yes
Steam Cycle
Yes
Control Lock
Yes
Light
Yes
Digital Display
Yes
Sensor Dry
Yes
Additional Information
• Up to 120 ft. venting capability
• eDry Energy Saving Option
• Removable Up-Front Lint Filter
• Exhaust Options 4-Way (Bottom,Left Side,Rear,Right Side)
• LED Cycle Status Indicator Lights
• Cycle Time Remaining Display
• Delay Start
• Door Window
• End-Of-Cycle Signal
• eDry Energy Saving Option
• Removable Up-Front Lint Filter
• Exhaust Options 4-Way (Bottom,Left Side,Rear,Right Side)
• LED Cycle Status Indicator Lights
• Cycle Time Remaining Display
• Delay Start
• Door Window
• End-Of-Cycle Signal
Electrical Information
Information
• 240 V
• 5600 W
• 24 A
• 60 Hz
• 5600 W
• 24 A
• 60 Hz
Certifications and Approvals
Energy Star Certified
Yes
Accessories
Optional
WiFi Connect (Requires part no. PBX10W00Y0)
Dimensions
Class Width
26" - 27"
Width
27 inch(es) / 68.58 cm
Height
48 inch(es) / 121.92 cm
Depth
30.5 inch(es) / 77.47 cm
Weight
111 lb(s) / 50.35 kg
Additional Dimensions
• Depth with door open 90 degrees: 53"
• Height to Top of Case 40 1/2 in
• Height to Top of Case 40 1/2 in
Shipping Dimensions
Weight
125 lb(s) / 56.7 kg
Warranty
Warranty
Limited one year parts and labor
UPC
UPC#
84691825098
