Features
CRISP MODE
Crisp mode uses the bake and broil elements to deliver air-fry like results. Perfect for your favorite fried foods, this mode uses a 2-minute preheat to get to temperature, then delivers fantastic crispy results.
EXPRESS PREHEAT
Get food on the table quicker thanks to a fast preheat oven. In just 7 minutes*, you have a perfectly preheated oven. *Preheats oven in just 7 minutes, bake mode to preheat beep, 350 degrees, one standard rack.

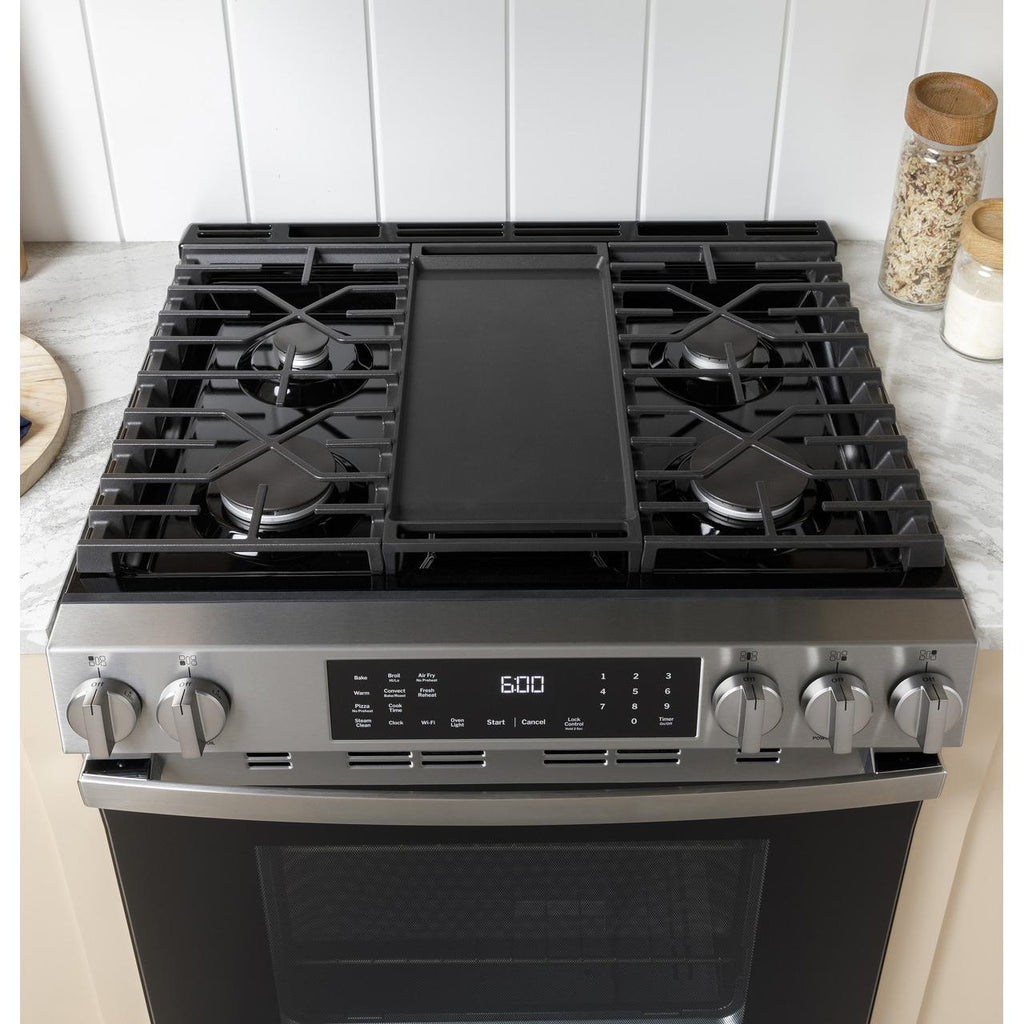

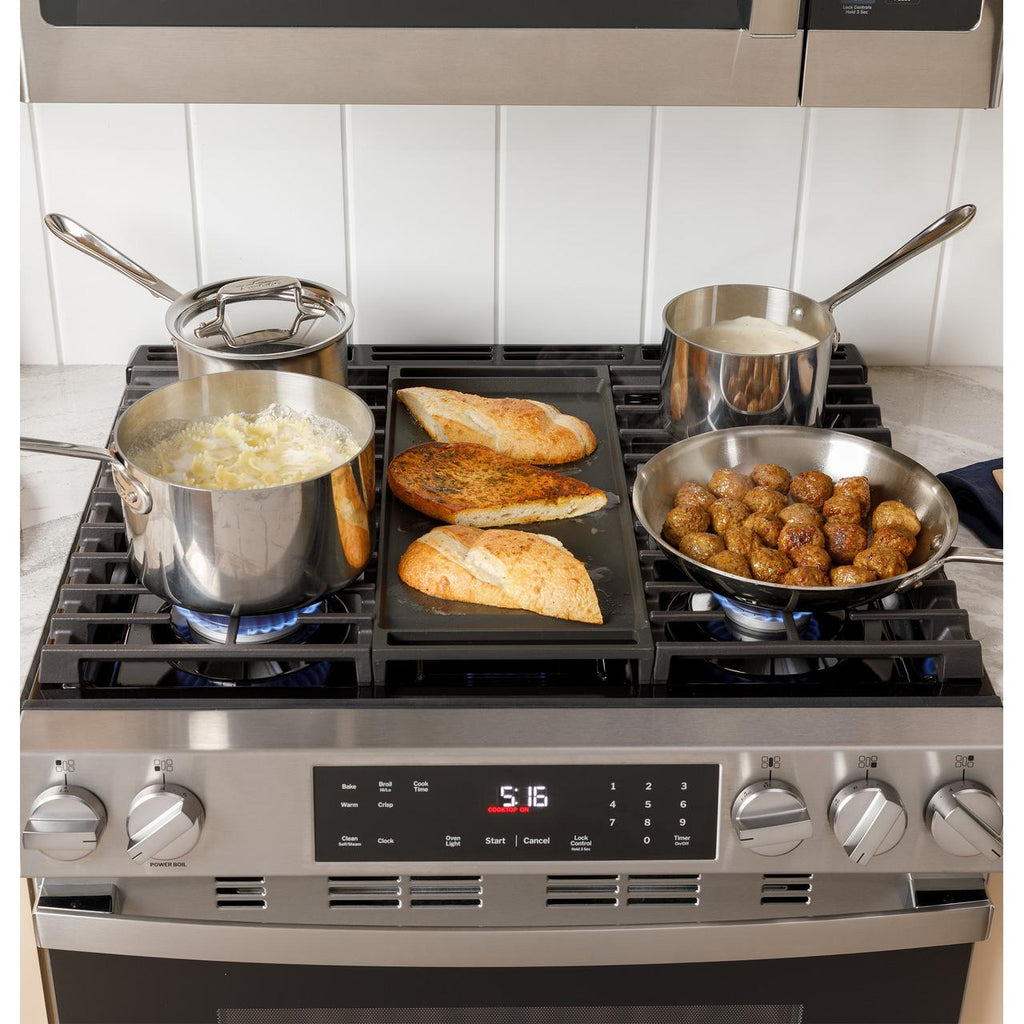

EXTRA-LARGE INTEGRATED NON-STICK GRIDDLE.
With an integrated griddle that is 20% larger than leading competition, you can cook up to six grilled cheeses at once.
15,000 BTU POWER BOIL BURNER.
Boil water faster than ever with an 15,000 BTU element that delivers high heat for quick boiling.

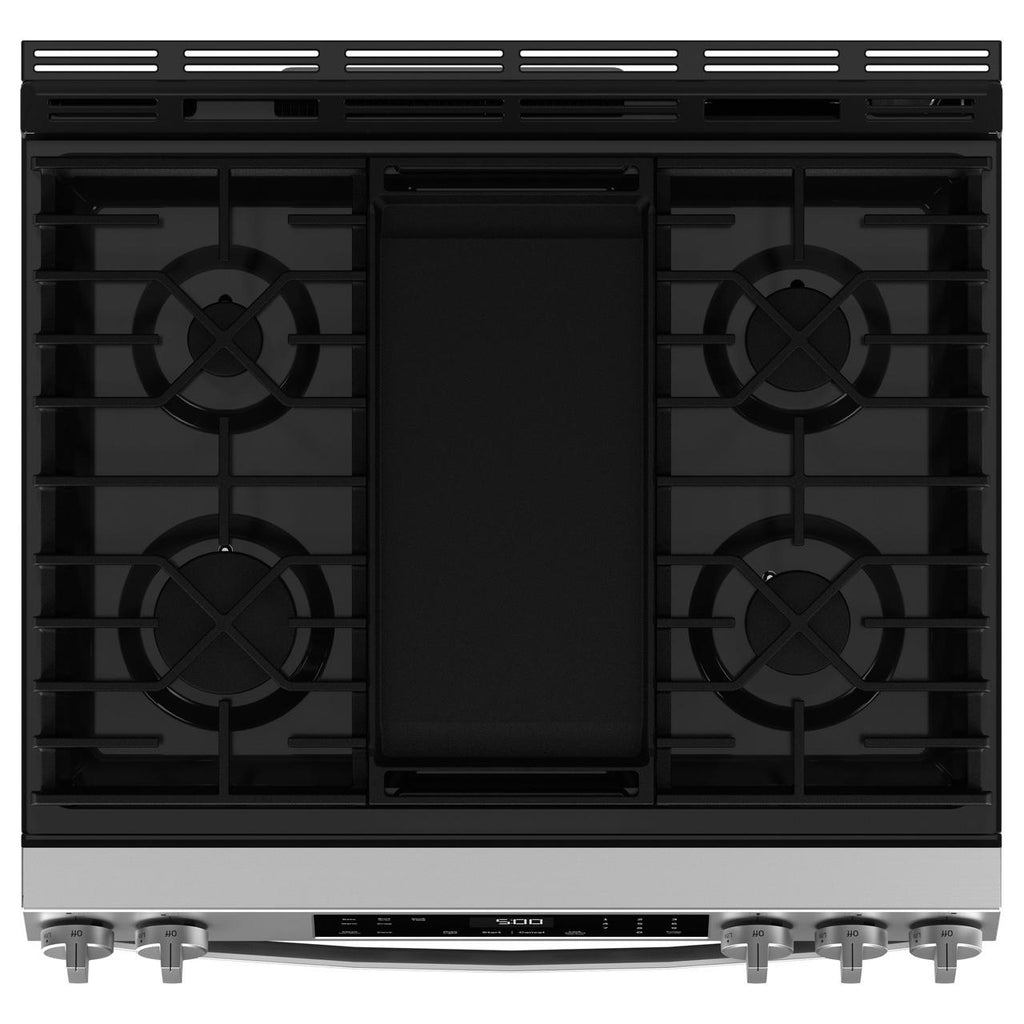

EDGE-TO-EDGE COOKTOP.
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner.
CENTER OVAL BURNER
Large oval fifth burner is ideal for griddle or odd-size cookware.
SELF-CLEAN WITH STEAM CLEAN
Save time and effort by using the self-cleaning function for deep clean situations, or enjoy frequent cleanings without the need for kits or extra steps thanks to the steam clean oven function.
HEAVY DUTY, DISHWASHER-SAFE GRATES
Enjoy a safe and easy-to-clean solution thanks to these heavy-duty, dishwasher-safe grates.

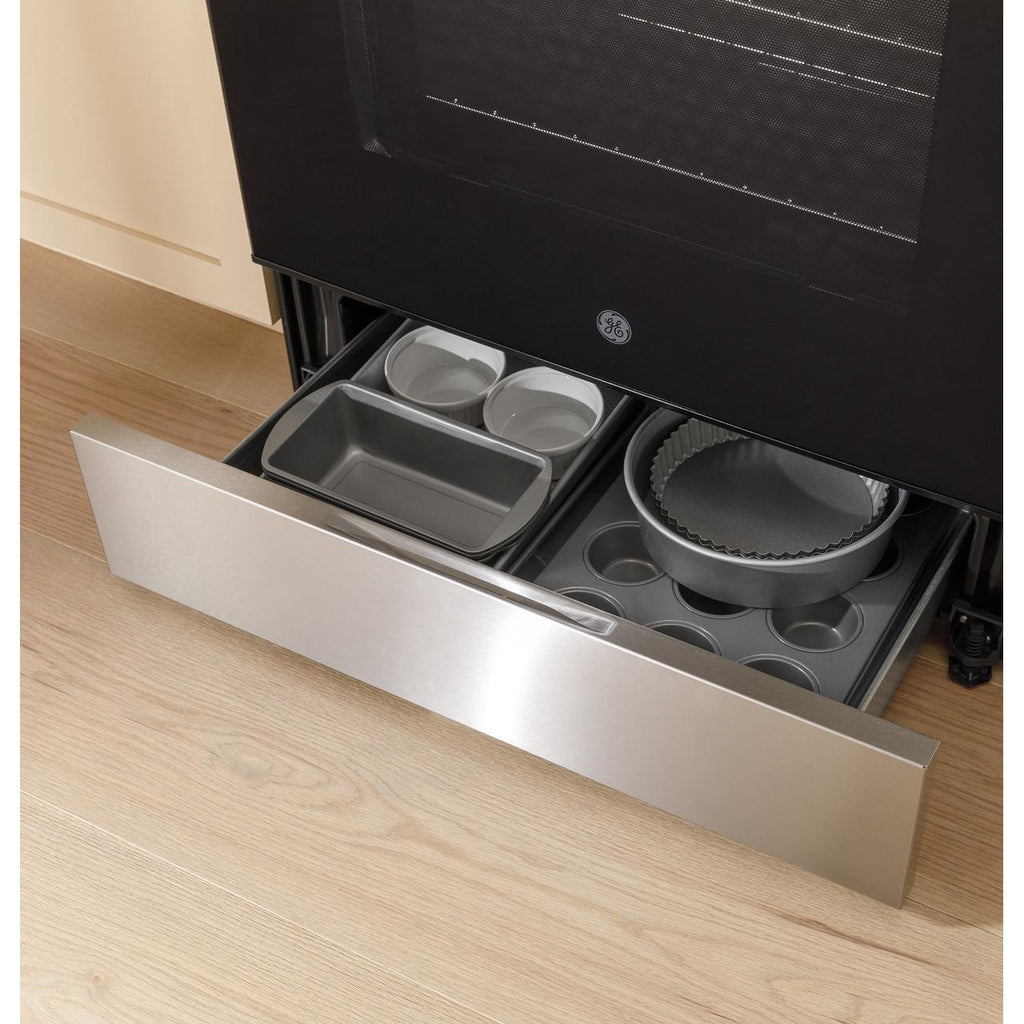

OVEN STORAGE DRAWER.
This model features a removable oven storage drawer that offers the perfect place to store cookware and other kitchen accessories.
PRECISE SIMMER BURNER
This burner setting provides low, even heat so delicate dishes don't burn.
Additional Features

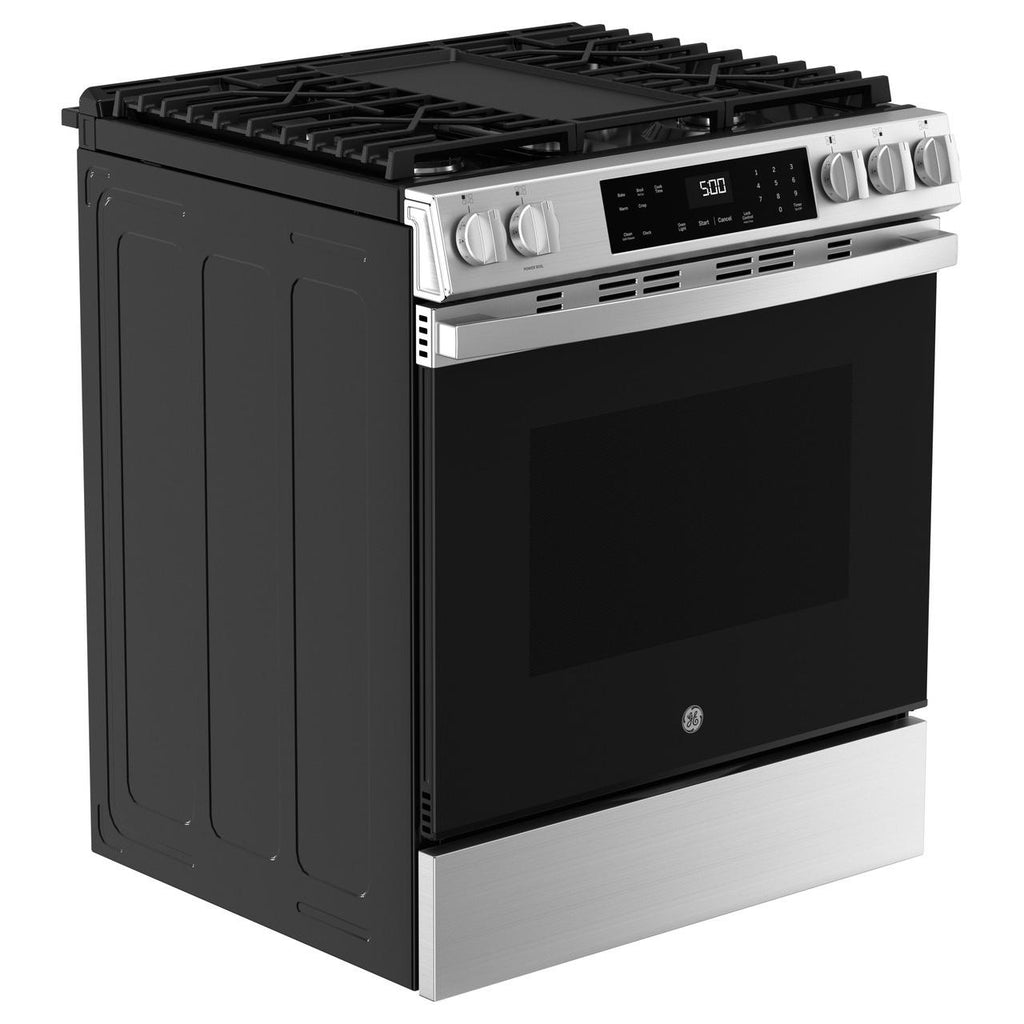

SLIDE-IN RANGE
Easily upgrade your kitchen with this new slide-in range that is guaranteed to fit into your existing space.
IN-OVEN BROIL
Healthy meals are hassle-free with in-oven broiling
Specifications
General
Series Name
500 Series
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-Clean with Steam Clean Option
Cooktop
Burners/Elements
5
Burners/Elements Output
• Center Burner: 8,000 BTU
• Left Rear Burner: 5,000 BTU
• Right Front Burner: 9,500 BTU
• Right Rear Burner: 9,500 BTU
• Left Rear Burner: 5,000 BTU
• Right Front Burner: 9,500 BTU
• Right Rear Burner: 9,500 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
5.30 cu. ft.
Number of Ovens
Single
Programs
• Bake
• High Broil
• Low Broil
• Crisp Mode
• High Broil
• Low Broil
• Crisp Mode
Features
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Big View Oven Window
• Standard Cast Grates
• Electronic Ignition System
• 1 Oven Light
• In-Oven Broiling
• Timer
• Cook Time
• Warm Mode
• 2 Nickel Racks
• Black Enamel Oven Interior
• 6 Rack Positions
• Standard Cast Grates
• Electronic Ignition System
• 1 Oven Light
• In-Oven Broiling
• Timer
• Cook Time
• Warm Mode
• 2 Nickel Racks
• Black Enamel Oven Interior
• 6 Rack Positions
Drawer Features
Storage
Yes
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Information
OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Accessories
Included
LP Conversion Kit
Optional
• Center Grate JXGRATE2
• Trim Kit: JXFILLR1SS/DD/BB
• Trim Kit: JXFILLR1SS/DD/BB
Dimensions
Class Width
30"
Width
30 inch(es) / 76.20 cm
Height
37.13 inch(es) / 94.30 cm
Depth (Without Handles)
26.25 inch(es) / 66.68 cm
Depth (Including Handles)
28.63 inch(es) / 72.71 cm
Weight
163.01 lb(s) / 73.94 kg
Additional Dimensions
• Depth with Door Open: 48 1/2 in
• Height to Cooking Surface: 36 - 36 1/2 in
• Height to Top of Rear Vent Trim: 36 5/8 in
• Oven Interior Dimensions (W x H x D): 24 x 19-1/2 x 20-5/8 in
• Overall Depth: 28 5/8 in
• Height to Cooking Surface: 36 - 36 1/2 in
• Height to Top of Rear Vent Trim: 36 5/8 in
• Oven Interior Dimensions (W x H x D): 24 x 19-1/2 x 20-5/8 in
• Overall Depth: 28 5/8 in
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
49.5 inch(es) / 125.73 cm
Depth
29.5 inch(es) / 74.93 cm
Weight
176 lb(s) / 79.83 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691922322
