Features
EDGE-TO-EDGE SEAMLESS COOKTOP
A large, seamless surface makes it easy to wipe away messes
FIT GUARANTEE
Replace your old 30” free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit to make replacement easy.

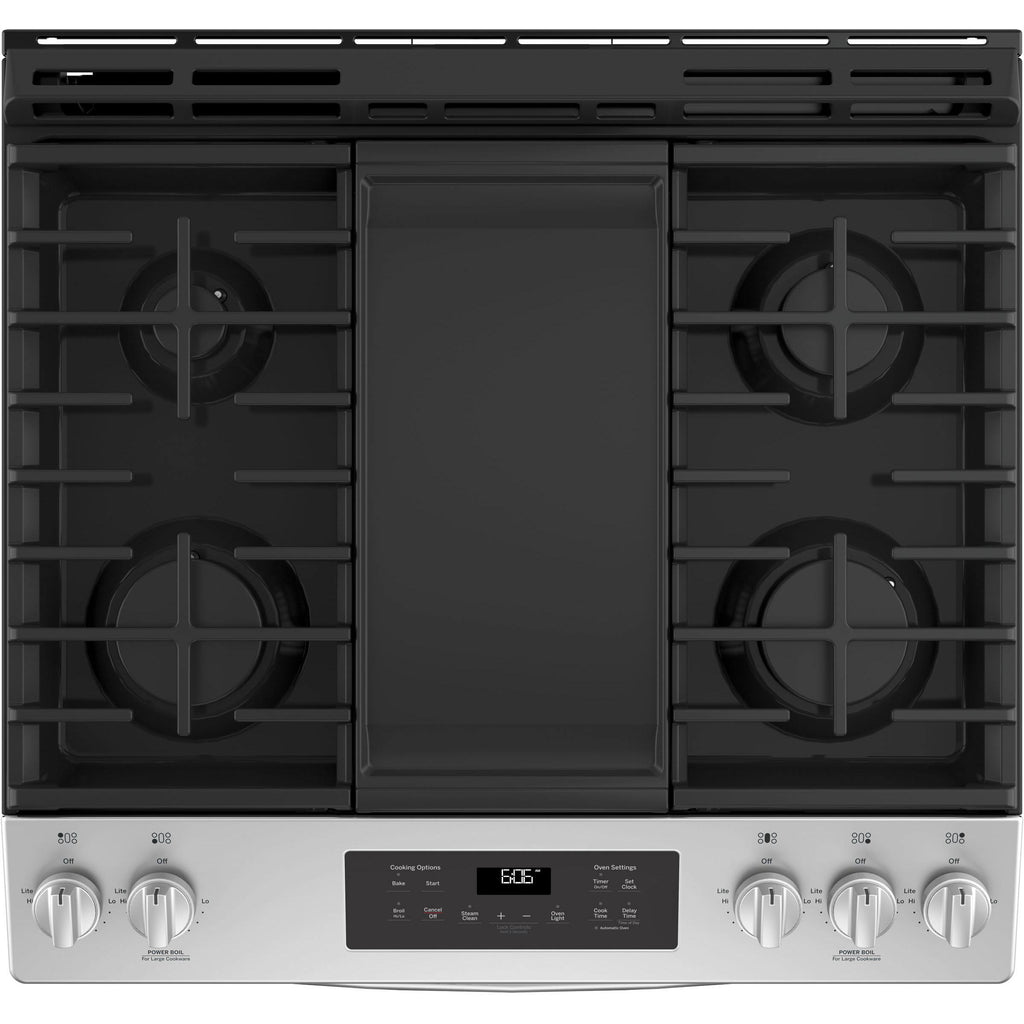

CONTINUOUS GRATES
Continuous grates give you a large cooking space and can handle any cookware.
CENTER OVAL BURNER
Large oval fifth burner is ideal for griddle or odd-size cookware.
SELF-CLEAN WITH STEAM CLEAN OPTION
This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor.
SEALED COOKTOP BURNERS
Helps contain spills from dripping beneath cooktop for easy clean-up. Sealed gas burner controls let you adjust flame height for various cooking needs.
EXTRA-LARGE INTEGRATED NON-STICK GRIDDLE
Cook up to six grilled cheeses at once on the industry's largest integrated griddle
ADA COMPLIANT
Designed to be accessible and easy to open
Additional Features
SMOOTH-GLIDE STORAGE DRAWER
Drawer opens and closes easily for instant access and extra storage
FINISHED SIDES
Attractive look allows for installation flexibility in any kitchen
Specifications
General
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
• Steam Clean
• Self-Cleaning
• Self-Cleaning
Cooktop
Burners/Elements
5
Burners/Elements Output
• Burner - Center: 10,000 BTU Oval
• Burner - Right Front: 15,000 BTU Power Boil
• Burner - Left Rear: 5,000 BTU Precise Simmer
• Burner - Left Front: 15,000 BTU
• Burner - Right Rear: 9,500 BTU
• Burner - Right Front: 15,000 BTU Power Boil
• Burner - Left Rear: 5,000 BTU Precise Simmer
• Burner - Left Front: 15,000 BTU
• Burner - Right Rear: 9,500 BTU
Burners
Sealed
Other
Griddle
Oven
Capacity (cu. ft.)
5.0
Number of Ovens
Single
Programs
• Audible Preheat Signal
• Auto Self Clean
• Control Lock Capability
• Electronic Clock & Kitchen Timer
• Steam Clean
• Auto Self Clean
• Control Lock Capability
• Electronic Clock & Kitchen Timer
• Steam Clean
Features
Technologies
Certified Sabbath Mode
Control Lock
Yes
Convection
No
Delay Bake/Start
No
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Edge-to-edge cooktop
• Extra-large integrated non-stick griddle
• Two 15,000 BTU Power Boil burners
• Smooth-glide storage drawer
• 10,000 BTU oval burner
• In-oven broil
• Continuous grates
• Guaranteed fit
• Smooth Glide Storage Drawer
• Finished sides
• Extra-large integrated non-stick griddle
• Two 15,000 BTU Power Boil burners
• Smooth-glide storage drawer
• 10,000 BTU oval burner
• In-oven broil
• Continuous grates
• Guaranteed fit
• Smooth Glide Storage Drawer
• Finished sides
Drawer Features
Storage
Yes
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
• LP Conversion Kit
• Griddle
• Griddle
Dimensions
Class Width
30"
Width
30 inch(es) / 76.20 cm
Height
36.25 inch(es) / 92.08 cm
Depth (Without Handles)
26.75 inch(es) / 67.94 cm
Depth (Including Handles)
29.25 inch(es) / 74.30 cm
Weight
194.01 lb(s) / 88.00 kg
Additional Dimensions
• Height to Top of Rear Vent Trim 37 3/8 in
• Height to Cooking Surface (in.) 36 1/4 +/- 1/4
• Depth with door fully open: 47"
• Oven Interior (W x H x D): 24" x 19" x 19"
• Height to Cooking Surface (in.) 36 1/4 +/- 1/4
• Depth with door fully open: 47"
• Oven Interior (W x H x D): 24" x 19" x 19"
Shipping Dimensions
Width
32.7 inch(es) / 83.06 cm
Height
44.5 inch(es) / 113.03 cm
Depth
31.5 inch(es) / 80.01 cm
Weight
214 lb(s) / 97.07 kg
Warranty
Warranty
Limited one year parts and labor
UPC
UPC#
084691823544
