Features
EDGE-TO-EDGE SEAMLESS COOKTOP
A large, seamless surface makes it easy to wipe away messes
18,000 BTU POWER BOIL BURNER
Boil water fast with intense heat from this 18,000 BTU burner.

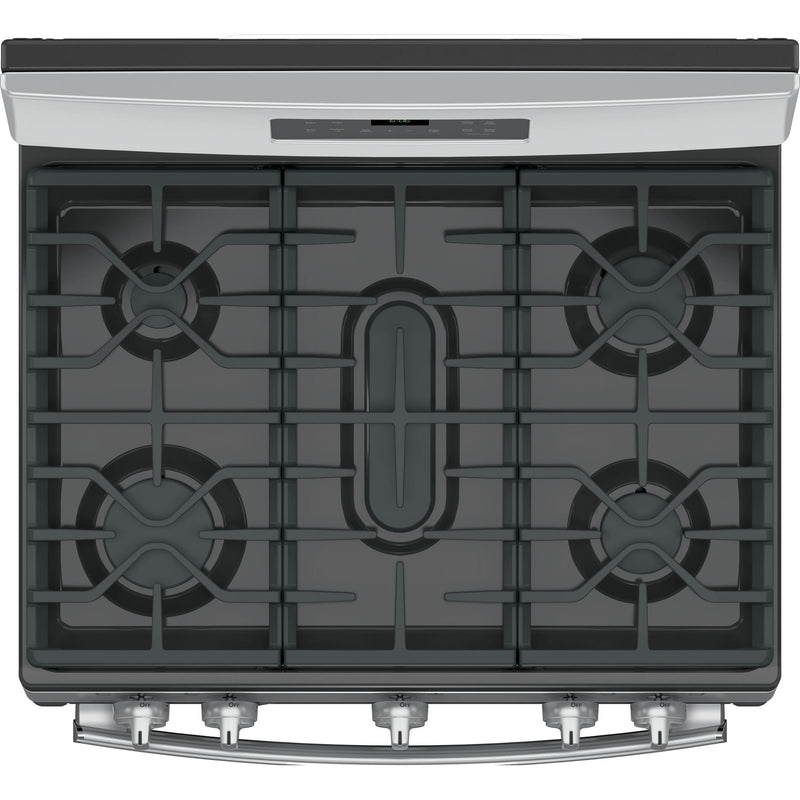

CENTER OVAL BURNER
Large oval fifth burner is ideal for griddle or odd-size cookware.
PRECISE SIMMER BURNER
This burner setting provides low, even heat so delicate dishes don't burn.
HEAVY DUTY, DISHWASHER SAFE GRATES
Easily and safely clean grates in the dishwasher
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-clean oven: Cleans the oven cavity without the need for scrubbing
Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front: 18,000 BTU Power Boil
• Left Rear: 5,000 BTU Precise Simmer
• Right Front: 9,500 BTU
• Right Rear: 12,000 BTU
• Center: 10,000 BTU Oval
• Left Rear: 5,000 BTU Precise Simmer
• Right Front: 9,500 BTU
• Right Rear: 12,000 BTU
• Center: 10,000 BTU Oval
Burners
Sealed
Oven
Capacity (cu. ft.)
5,0
Number of Ovens
Single
Programs
• Audible Preheat Signal
• Auto Self Clean
• Certified Sabbath Mode
• Control Lock Capability
• Delay Bake Option
• Auto Self Clean
• Certified Sabbath Mode
• Control Lock Capability
• Delay Bake Option
Features
Control Lock
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
No
Additional Information
• Center Continuous Grates
• Cooktop Burner Grate Material: Heavy Cast Iron
• Digital Temperature Display
• Electronic Oven Controls
• Electronic Touch
• 1 Incandescent Oven Light
• 2 Oven Racks
• Big View Oven Window
• Optional Griddle
• LP Conversion Kit Included
• Bake/broiler BTU Rating - Lp (000's BTU's): 16.0 Bake / 12.0 Broiler
• Bake/broiler BTU Rating - Nat. Gas (000's BTU's): 16.0 Bake / 13.5 Broiler
• Top Burner BTU Rating - Lp (000's BTU's): (1) 18.0; (1) 5.0; (1) 9.5; (1) 12.0; (1) 8.0
• Top Burner BTU Rating - Nat. Gas (000's BTU's): (1) 10.0; (1) 9.5; (1) 12.0; (1) 5.0; (1) 18.0
• Cooktop Burner Grate Material: Heavy Cast Iron
• Digital Temperature Display
• Electronic Oven Controls
• Electronic Touch
• 1 Incandescent Oven Light
• 2 Oven Racks
• Big View Oven Window
• Optional Griddle
• LP Conversion Kit Included
• Bake/broiler BTU Rating - Lp (000's BTU's): 16.0 Bake / 12.0 Broiler
• Bake/broiler BTU Rating - Nat. Gas (000's BTU's): 16.0 Bake / 13.5 Broiler
• Top Burner BTU Rating - Lp (000's BTU's): (1) 18.0; (1) 5.0; (1) 9.5; (1) 12.0; (1) 8.0
• Top Burner BTU Rating - Nat. Gas (000's BTU's): (1) 10.0; (1) 9.5; (1) 12.0; (1) 5.0; (1) 18.0
Drawer Features
Baking
No
Broiler
No
Storage
Yes
Warming
No
Electrical Information
Information
• 120 V
• 15 A
• 60 Hz
• 15 A
• 60 Hz
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
LP Conversion Kit
Optional
Griddle
Dimensions
Class Width
30"
Width
30 inch(es) / 76.20 cm
Height
47.25 inch(es) / 120.02 cm
Depth (Without Handles)
26.25 inch(es) / 66.68 cm
Depth (Including Handles)
28.75 inch(es) / 73.02 cm
Weight
195 lb(s) / 88.45 kg
Additional Dimensions
• Depth Without Handle: 26 1/4 in
• Oven Interior Dimensions (W x H x D) (in.): 24 x 19 x 19
• Height to Cooking Surface (in.): 36 - 36 1/2
• Depth with Door Open: 46 1/4 in
• Oven Interior Dimensions (W x H x D) (in.): 24 x 19 x 19
• Height to Cooking Surface (in.): 36 - 36 1/2
• Depth with Door Open: 46 1/4 in
Shipping Dimensions
Width
32.9 inch(es) / 83.57 cm
Height
49.6 inch(es) / 125.98 cm
Depth
30.8 inch(es) / 78.23 cm
Weight
214.99 lb(s) / 97.52 kg
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
084691811350
