Features
ULTRA WASH AND DRY
Unload sparkling clean, table-ready dishes thanks to Café™ 100+ cleaning jets and an Ultra-Dry system that deliver excellent results

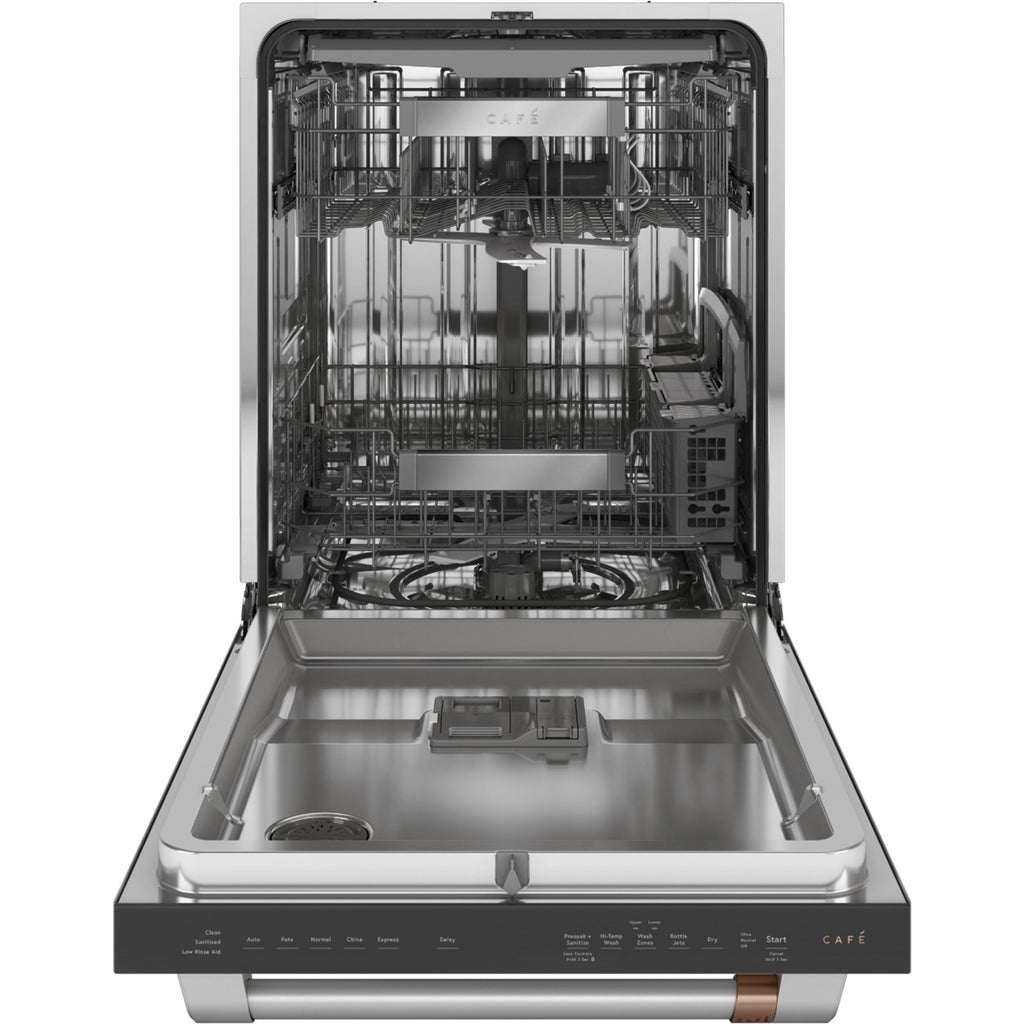

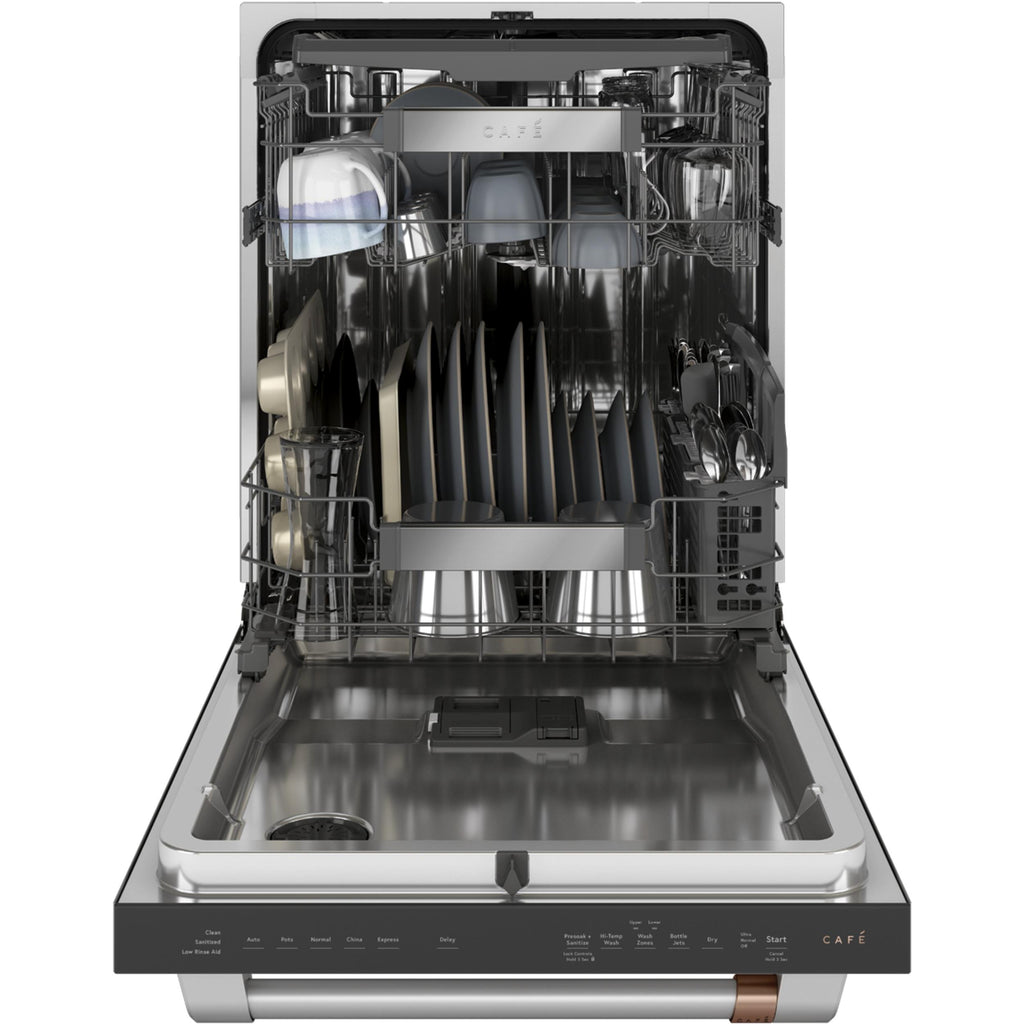

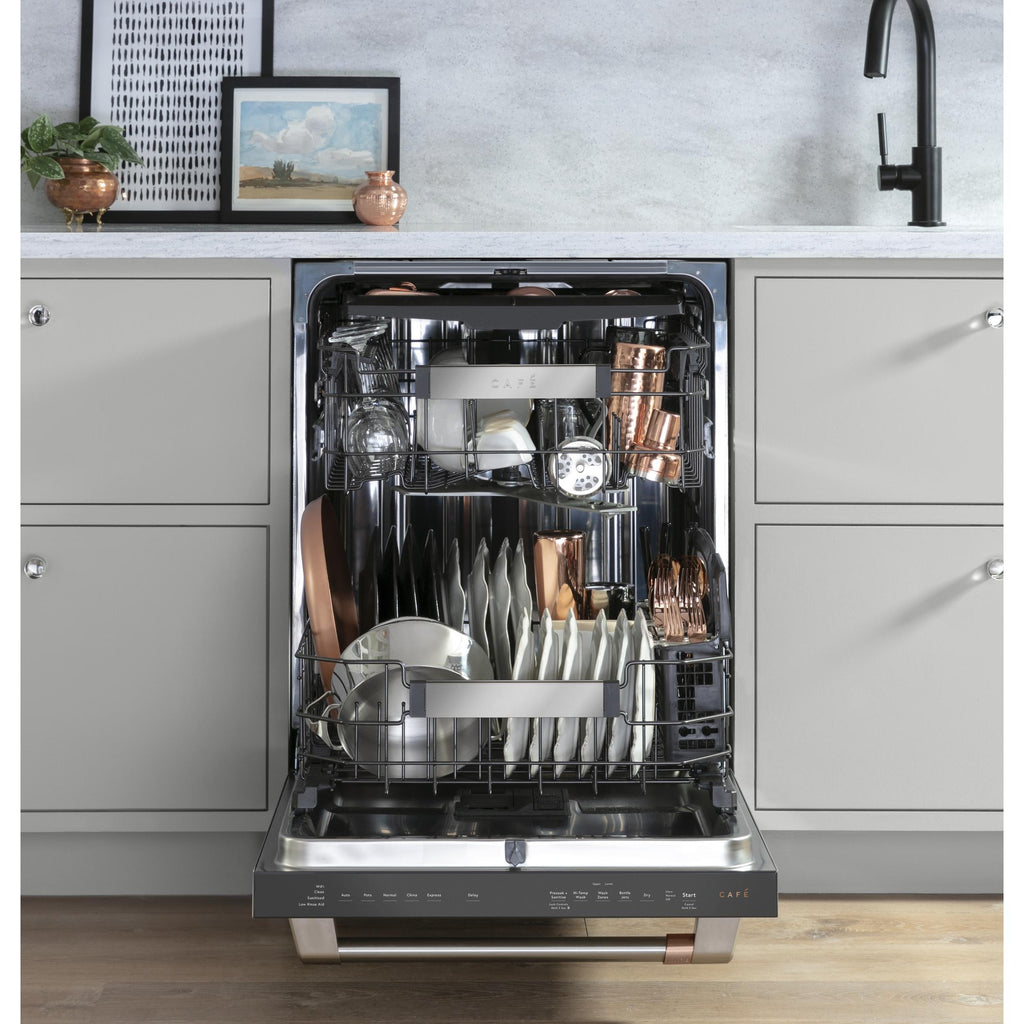

LOADING FLEXIBILITY
Load the dishes your way: Lower wash arm provides excellent coverage for the largest of loads. The fold down tines accommodate wide or oddly shaped items and our third rack provides extra space for your silverware and kitchen utensils
ADUSTABLE UPPER RACKS
You’ll have room for your finest stemware and space for tall bakeware with a rack that can be moved two inches up or down, creating ultimate loading flexibility
Specifications
General
Series Name
800 Series
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
45 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• Auto
• Pots
• Normal
• China
• Express
• Pots
• Normal
• China
• Express
Options
• Delay Start 1-12 Hr.
• Lock Controls
• Hi-Temp Wash
• Presoak + Sanitize (NSF Certified)
• Heated Dry Off
• Normal Dry
• Ultra Dry
• Wash Zone Upper Only
• Wash Zone Lower Only
• Start/Reset
• Bottle Jets
• Lock Controls
• Hi-Temp Wash
• Presoak + Sanitize (NSF Certified)
• Heated Dry Off
• Normal Dry
• Ultra Dry
• Wash Zone Upper Only
• Wash Zone Lower Only
• Start/Reset
• Bottle Jets
Features
Technologies
Wi-Fi Connectivity
Delay Start Information
1-12 Hours
Delay Start
Yes
3rd Rack System
Yes
Control Lock
Yes
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• 100% Filtration with Hard Food Disposer and Removable Filter
• Rinse Aid with Indicator and Adjustment
• Cap Touch Controls; 12 Touchpads
• Cycle Countdown with Bi-Color LED Status Light on door
• 1 "Clean" Light
• 1 "Sanitized" Light
• 1 "Low Rinse Aid" Light
• Last Cycle Memory
• Audible End-of-Cycle Signal
• Clean Sensor
• Wash Arms: 3 Wash Levels, Lower- Reversing Quad Blade, Middle - Quad Blade, Bottle Jets
• Upper Rack: Premium Height Adjustable; Ball-Tip Tines, 1/2 fixed tines, 1/2 fold down tines, Fixed tines with Bottle Jets, 1 Rack handle, 2 Stem Safe Shelves, Chop stick slots
• Lower Rack: Ball-Tip Tines, 1/2 fixed tines, 1/2 fold down tines
• Rinse Aid with Indicator and Adjustment
• Cap Touch Controls; 12 Touchpads
• Cycle Countdown with Bi-Color LED Status Light on door
• 1 "Clean" Light
• 1 "Sanitized" Light
• 1 "Low Rinse Aid" Light
• Last Cycle Memory
• Audible End-of-Cycle Signal
• Clean Sensor
• Wash Arms: 3 Wash Levels, Lower- Reversing Quad Blade, Middle - Quad Blade, Bottle Jets
• Upper Rack: Premium Height Adjustable; Ball-Tip Tines, 1/2 fixed tines, 1/2 fold down tines, Fixed tines with Bottle Jets, 1 Rack handle, 2 Stem Safe Shelves, Chop stick slots
• Lower Rack: Ball-Tip Tines, 1/2 fixed tines, 1/2 fold down tines
Electrical Information
Information
120 V
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
Accessories
Included
CXADTH1PMSS : Brushed Stainless Steel Kit - 1 handle
Optional
• CXADTH1PMBZ : Brushed Bronze Kit - 1 handle
• CXADTH1PMBT : Brushed Black Kit - 1 handle
• CXADTH1PMCU : Brushed Copper Kit - 1 handle
• CXADTH1PMFB: Flat Black Kit - 1 handle
• CXCG1K0PMCG: Brushed Brass Kit - 6 knobs
• CXADTH1PMBT : Brushed Black Kit - 1 handle
• CXADTH1PMCU : Brushed Copper Kit - 1 handle
• CXADTH1PMFB: Flat Black Kit - 1 handle
• CXCG1K0PMCG: Brushed Brass Kit - 6 knobs
Dimensions
Class Width
24"
Width
23.75 inch(es) / 60.32 cm
Height (Min.)
33.37 inch(es) / 84.77 cm
Depth (Without Handle)
24 inch(es) / 60.96 cm
Depth (Including Handle)
24 inch(es) / 60.96 cm
Weight
105.01 lb(s) / 47.63 kg
Shipping Dimensions
Width
24.5 inch(es) / 62.23 cm
Height
35.3 inch(es) / 89.66 cm
Depth
27.9 inch(es) / 70.87 cm
Weight
117.99 lb(s) / 53.52 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
084691843382
